High Effective High Quality Easy Operation Free Parts

Adapt to Different Types of Glass
Ordinary flat glass, ultra white glass, screen printed glass, embossed glass, colored glass, online L0W-E glass, etc.
Processing Application Areas
1. Windshield glass for electric tricycles
2. Windshield glass for electric four-wheel vehicles
3. Front and rear windshields, as well as side windshields of various cars
Types of Products that can be processed
1. Single sided windshield
2. Hyperbolic windshield glass
3. Various irregular shaped windshields

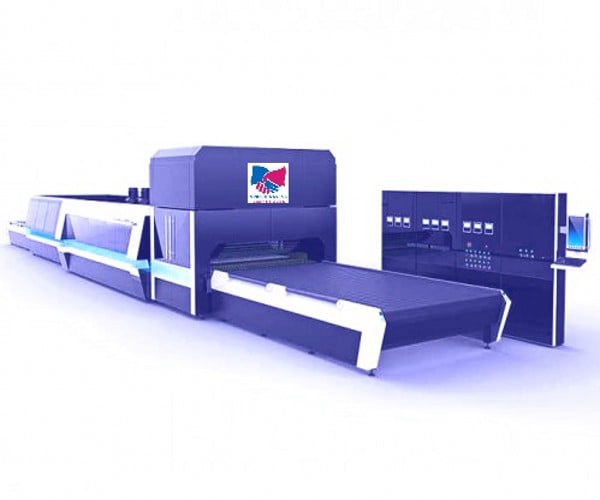

Curved Glass Tempering Furnace has a wide range of detailed Applications

1.Construction Industry
It produces curved tempered glass with different radians and shapes. This glass is used in building facades, serving both decorative and structural support purposes. It can also be made into daylighting roofs to provide natural light for buildings while ensuring wind and compression resistance. Moreover, it is used to create the glass walls of sightseeing elevators, guaranteeing safety and meeting the sightseeing needs.

2.Automotive Industry
It manufactures tempered glass that meets the curved requirements of automotive windshields, side windows, and rear windows, ensuring clear vision, enhancing aesthetics, and improving safety.

3.Electronics Industry
It tempers the glass substrates of curved displays for devices such as mobile phones, tablets, and televisions, enhancing their strength and wear resistance.

4.Other Fields: It is used to make furniture decorative components like tabletops and partitions. Additionally, it can produce decorative ornaments, satisfying personalized demands.

Features

1.Intelligent Control
1.1.It has outstanding thermal insulation performance, and the furnace wire features intelligent heating.

1.2.The furnace temperature is intelligently compensated, saving 0.5 - 1 kWh of electricity per square meter.

1.3.The furnace wire heating control mode adopts PLD closed - loop control, making the heating system intelligent and flexible.

1.4.The heating control mode uses multiple temperature - control curves, allowing glass pieces of different sizes to be heated in one furnace simultaneously, and the quality of all pieces can meet the requirements.

1.5.The heating method adopts intelligent protection measures to prevent the furnace temperature from getting out of control and scalding the glass surface.

1.6.A variable - frequency fan is used for stepless speed regulation, thus maximizing power savings.

1.7.The control system can store 100 orders, and appropriate production process parameters can be retrieved at any time according to the production situation.

1.8.The temperature control of the control system adopts dual protection of time and temperature, absolutely preventing the glass from sticking to the quartz track.

2.Molding Method
It is molded by a mold at high temperature, ensuring accurate molding and a perfect glass curvature.
3.Variety Change
The mold can be replaced conveniently and quickly.
4.Operation Mode
The production process is fully automatically controlled, equipped with a self - diagnosis function and a user - friendly human - machine interface.
5.Control System
It can store multiple order parameters and is servo - controlled.
6.Air Supply System
The upper and lower air grilles are easy to adjust, enabling the production of various types of glass.

7.Low Maintenance Cost
7.1.When replacing the furnace wire in the heating system, high - temperature operation is possible. There is no need to cool down the furnace body, and the furnace wire can be replaced at any time.

7.2.An emergency DC protection system is adopted to prevent glass from damaging the quartz roller track in case of a power outage.
