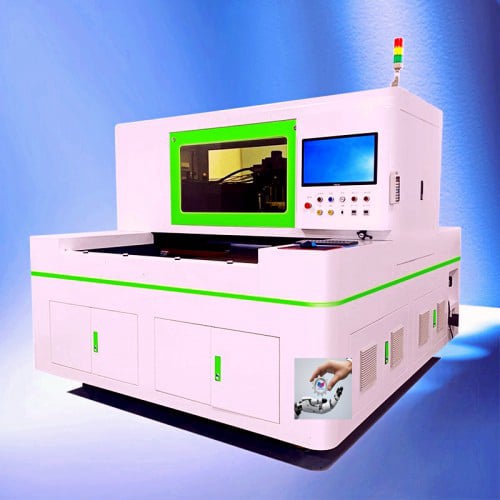

Applications of Laser Glass Cutting Machine

The picosecond laser cutting and splitting machine is used for high-precision glass cutting and splitting processing. Its characteristics are high cutting accuracy, high yield, high efficiency, and dual platforms moving simultaneously. One platform is used for picosecond processing, and the other platform is used for carbon dioxide splitting, achieving double efficiency, especially for cutting irregular glass, which has significant advantages.
Features of Laser Glass Cutting Machine

1. High power picosecond laser is selected as the light source, and the core components such as seed source and LD pump source are provided by international first-line manufacturers. Stable ultra short pulse processing without thermal conduction is used, suitable for high-speed cutting of any organic and inorganic materials, with a minimum edge breakage and heat affected zone of 10 μ m;

2. Customized Bessel light speed cutting head, with imported lenses, fine spot size, long focal depth, and a minimum focusing spot size of 1-3 μ m. The focal depth can be customized according to customer needs;

3. The effective cutting speed is up to 300mm/s, and the dual Y high-speed automatic switching station has no idle stop, improving cutting capacity;

4. Achieve non tapered cutting with smooth and beautiful edges;

5. High definition CCD and telecentric vision lens, accurately identifying Mark points of circles, crosses, squares, triangles, and other types;

6. Use a high negative pressure vacuum pump to adsorb the product and ensure positioning stability;

7. The linear motor platform and optical platform base are made of natural marble, which has undergone secondary fine grinding and processing to achieve a precision level of 00;

8. The X/Y-axis motor adopts high-end linear motor, British 0.1 μ m digital grating ruler, and the Z-axis adopts P-type screw and guide rail, with high-quality core moving parts and 24-hour operation without faults;
9. It can achieve dual station processing with high efficiency and stable performance. Automatic loading and unloading, splitting, etc. can be customized according to customer needs.
